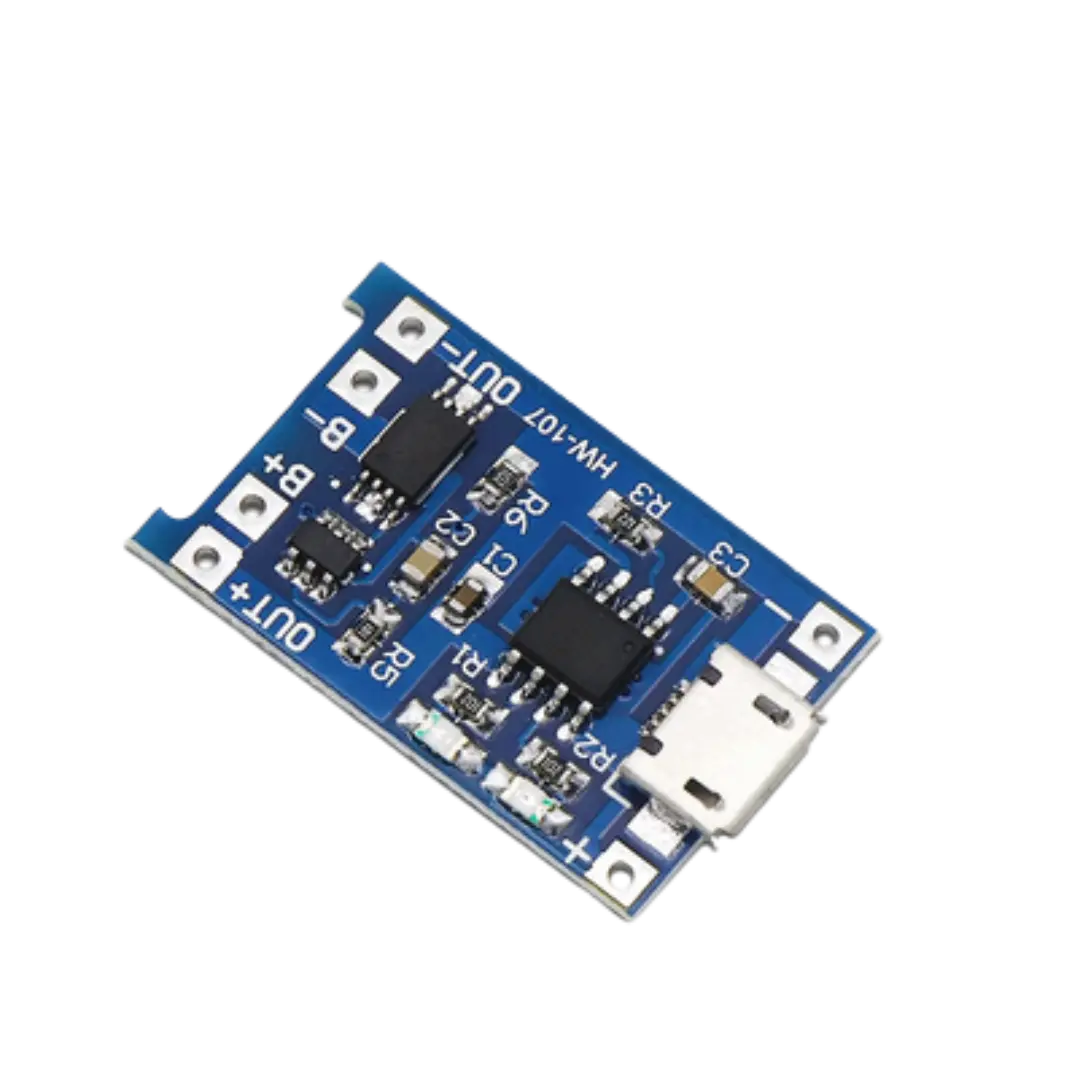

SB Solar TP4056 1A 18650 Li-ion lithium Battery Charging Module with BMS MICRO USB pin TP 4056 Pack Of (1)

Product Description:- Charge your lithium battery with the TP4056 Battery Charging Module! Simply connect the ends of the battery to the BAT+ and BAT- terminal of the module and power the module with a 5V power supply from the micro USB port. The module is basically made for charging rechargeable lithium batteries using the constant current/constant voltage charging method.Input Voltage: 4.5V to 5.5V. the module will cut output power from the battery if the discharge rate exceeds 3A or if a short-circuit condition occurs. Soft-start protection limits inrush current Full-charge voltage: 4.2V. Module performance: The input voltage: 4.35-6 v (recommended voltage 5 v) Charge cut-off voltage: 4.2 V + / – 1% Maximum charging current output: 1000 ma The battery overcharge protection voltage: 4.28 V Battery overcharge lifting voltage: 4.00 V The battery discharge protection voltage: 3.0 V Battery discharge termination voltage: 3.2 V Battery: over-current protection current 3 a The board size: about 2.5 * 1.65 CM Light state
